Humboldt HS-5001EZ-2 Nuclear Gauge
Features of the EZ-2 Gauge
FEATURES OF THE
EZ-2 Gauge

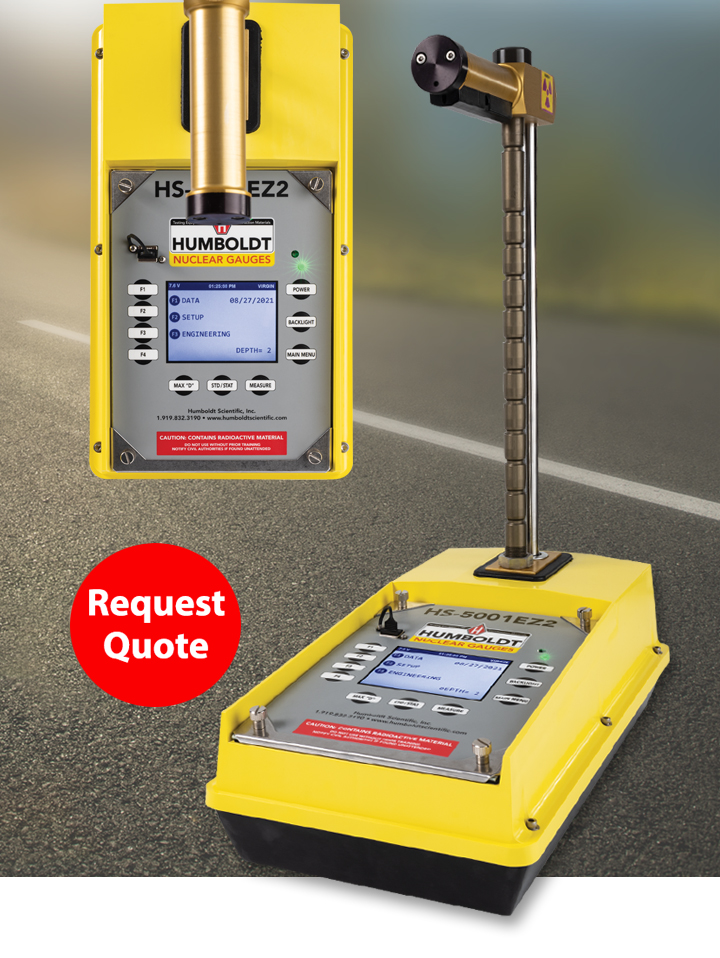

Humboldt’s HS-5001EZ-2 reflects the latest in portable, electronic design for nuclear gauges, featuring a large, back-lit LCD display. Humboldt’s EZ-2 Moisture/Density Gauge is just that — easy. Easy-to-operate, easy-to-power and easy-to-service. The EZ-2 Gauge features a menu-driven control panel with easy-to-use, built-in test routines and auto features, making testing a quick and accurate operation. It also features our innovative trigger release handle that eliminates pinched fingers while providing smooth operation.
The EZ-2’s versatility allows it to measure density through direct transmission, backscatter, thin lift and trench modes, as well as providing moisture determinations. The gauge uses an advanced microprocessor-based technology to provide highly-accurate measurements of density and moisture that are automatically computed for direct readouts of wet density, dry density, moisture content, percent of moisture, percent of compaction (Proctor or Marshall), void ratio and air voids.
The EZ-2 Gauge complies with all pertinent standards: ASTM D6938, D2950, C1040 and AASHTO T310, T355 and is calibrated by the Five-block calibration method ASTM D7013 and ASTM D7759.
For immediate assistance, please call us at 1‑800‑537‑4183
USB Port —
For fast, test download
Large Display —
Easily readable in bright sunlight LCD Type, TFT; Normal Black
Temperature Sensor —
Auto recording ambient temperature at test
Multi-Language —
Selectable: English, French, & Spanish
3D Accelerometer —
Auto turn off on motion (with movement of the gauge)
Micro SD Card —
Auto storage of 2GB of test Data, 250 tests per project
Power Source —
6 AA batteries
GPS —
Geographic coordinates and altitude information
Real Time Clock (RTC) —
Multi-date/time formats
QR Code-Driven App —
Capture and share data test results with anyone, anywhere
SPECIFICATIONS
Mechanical
| Operating Temperature: | 14 to 158°F (-10 to 70°C) ambient, 347°F (175°C) Material Surface |
| Storage Temperature: | -70 to 185°F (-55 to 85°C) |
| Humidity: | 98% without condensation, Rain-Resistant Construction |
| Vibration: | 0.1" (2.5mm) at 12.5 Hz |
| Materials: | |
| Shielding: | Tungsten Powder Alloy |
| Source Rod: | 440C Stainless steel, Induction, heat treated to 55 Rockwell C |
| Gauge Base: | Computer-Machined 6061-T6 Aluminum, Hard-Coated and PTFE Impregnated |
| Post and Frame: | Computer-Machined 6061-T6 Aluminum, Anodized for Anti-corrosion |
| Index Rod: | 7075 aluminum, Hard Coated and PTFE Impregnated |
| Top Shell: | Injection-Molded Noryl with Integral Color |
| Bearing: | Relieved Bronze with Neoprene Seals |
| Screws/Fittings: | Stainless Steel and Brass |
Measurement: Density at 125 pcf (2000 kg/m3)
| Direct Transmission, 6" (150mm) | 15 seconds (Fast) | 1 minute (Std.) | 4 minutes (Slow) |
| Precision, pcf (kg/m3) | ±0.5 (8) | ±0.25 (4) | ±0.13 (2) |
| Chemical Error, pcf (kg/m3) | ±1.0 (16) | ±1.0 (16) | ±1.0 (16) |
| Surface Error, pcf (kg/m3) | -0.5 (8) | -0.5 (8) | -0.5 (8) |
| Measurement Depth: 2 to 12" (50 to 300mm) | |||
| Backscatter, 3.5" (88mm) | 15 seconds (Fast) | 1 minute (Std.) | 4 minutes (Slow) |
| Precision, pcf (kg/m3) | ±1.0 (16) | ±0.5 (8) | ±0.25 (4) |
| Chemical Error, pcf (kg/m3) | ±2.5 (40) | ±2.5 (40) | ±2.5 (40) |
| Surface Error, pcf (kg/m3) | -3.0 (48) | -3.0 (48) | -3.0 (48) |
| Measurement Depth: 3.5" (88mm) | |||
| Moisture at 10pcf (160kg/m3) | 15 seconds (Fast) | 1 minute (Std.) | 4 minutes (Slow) |
| Precision, pcf (kg/m3) | ±0.5 (8) | ±0.25 (4) | ±0.13 (2) |
| Surface Error, pcf (kg/m3) | -0.25 (4) | -0.25 (4) | -0.25 (4) |
| Measurement Depth: 4-8" (100 to 200mm) | |||
Dimensions/Weight
| Gauge: | |
| Dimensions (base): | 15.75" x 8.66" x 5.5" (400 x 220 x 140mm) |
| Handle Height: | 18" or 21.5" (450 or 550mm) |
| Weight: | 30 lbs (13.6kg) |
| Reference Standard: | |
| Dimensions: | 13.8" x 7.8" x 3" (350 x 200 x 75mm) |
| Weight: | 10 lbs (4.5kg) |
| Transit Case: | |
| Dimensions: | 31" x 14" x 19.5" (787 x 356 x 495mm) |
| Weight: | 31 lbs (11.8kg) |
| Accessory Case (loaded): | |
| Dimensions: | 19.7" x 9.8" x 5" (500 x 250 x 125mm) |
| Weight: | 16 lbs (7.3kg) |
| Total Shipping Weight: | 90 lbs (41kg) |
Radioactive Materials Data Needed for License Application
| Material | Chemical/Physical Form | Maximum Amount |
|---|---|---|
| Cesium-137 | Sealed Source Humboldt 2200064 | Not to exceed 11 millicuries per source |
| Americium-241:Be | Sealed Source Humboldt 2200067 | Not to exceed 44 millicuries per source |
Electrical
| Display: | TFT, Normal Black, Sunlight Readable |
| Display Dimension: | 96.82(W) x 78.7(H) x 3(D) mm |
| Display Resolution: | 640 x 480 |
| Display Backlight: | LED |
| Timer Stability: | 0.01% |
| Language: | Selectable – English, French, or Spanish |
| Power Supply Stability: | 0.10% |
| Power Source: | Six alkaline AA-size batteries |
| Power Consumption: | 0.9 - 24mA, Battery Life—1200 hours |
| Power Protection: | Main Batteries—Circuit Breaker Regulated Supplies—Short Circuit Proof |
| Low Battery Condition: | LOBAT Alarm and Auto Shutoff for low and dead battery conditions |
| Battery Life: | Remaining Battery Life Automatically Estimated at Power-up by activating TEST routine |
| Microcontroller (MCU): | 160MHz, 32 Bit |
| Real Time Clock (RTC): | Multi date/time formats |
| Shutdown: | Auto / User Selectable |
| Temperature Sensor: | Auto recording ambient temperature at test |
| 3D Accelerometer: | Auto turn off on motion |
| Micro SD Card: | Auto storage of 2GB of test DaData - 250 tests per project |
Radiological
| Gamma Source | |
| Material, Type and Amount: | Cs-137, 370MBq (10mCi) |
| Special Form Registration: | USA/0356/S-96 Rev 12 |
| ANSI and ISO Class: | ANSI 77C66535 |
| Neutron Source | |
| Material, Type and Amount: | Am-241: Be, 1.48GBq (40mCi) |
| Neutron Yield: | 70 Knps ±10% |
| Special Form Registration: | CZ/1009/S-96 Rev 1 |
| ANSI and ISO Class: | ANSI 77C66545 |
| Source | |
| Type: | Sealed Source, Special Form |
| Housing: | Stainless Steel, Double Encapsulated |
| Surface Dose Rates | 18.7 mrem/hr Maximum (Neutron and Gamma) |
| Transit (shipping) Case | DOT 7A, Type A, Yellow II Label, O.2 TI |
